This is the Bergeon 5378 professional hands setting tool, designed for watchmakers to precisely install hour, minute, and seconds hands onto movement pinions. The set includes a sturdy nickel-plated base, a stake holder, and 8 stakes (press stamps) of various diameters and tip types, accommodating different hand sizes and movement models. This product is genuine Bergeon, made in Switzerland, and brand new in original packing.
| Feature | Description |
|---|---|
| Brand | Bergeon (Swiss professional watchmaking tool brand) |
| Model | 5378 |
| Product Type | Hands Setting Tool |
| Base Diameter | 50 mm, nickel-plated for stability |
| Overall Dimensions | Approx. 50 × 65 mm |
| Weight | Approx. 260 g |
| Number of Stakes | 8 pieces |
| Core Function | Press hour, minute, and seconds hands onto movement pinions |
| Compatibility | Various hand sizes and movement models |
| Origin | Made in Switzerland |
8 Stake Specifications:
| Type | Specification | Application |
|---|---|---|
| Cylinder Hollow Stake | Ø 0.30 mm | Seconds hand (smallest pivot) |
| Cylinder Hollow Stake | Ø 0.50 mm | Minute hand |
| Cylinder Hollow Stake | Ø 0.70 mm | Hour hand |
| Cylinder Hollow Stake | Ø 1.15 mm | Larger hands or special pivots |
| Cylinder Hollow Stake | Ø 1.50 mm | Larger hands or special pivots |
| Cylinder Hollow Stake | Ø 1.70 mm | Larger hands or special pivots |
| Conical Stake | Cone-shaped tip | Specific hand or dial operations |
| Flat Nylon Tip Stake | White nylon end | Protects dial surface from scratches |
1. Preparation:Place the hands setting tool on a stable workbench – ensure the base is secure
2. Select Stake:Choose the appropriate cylinder hollow stake based on hand hole diameter and pivot size (0.30/0.50/0.70/1.15/1.50/1.70 mm)
3. Install Stake:Insert the selected stake into the stake holder – ensure it is securely fixed
4. Position Movement:Place the movement with dial installed in the center of the base
5. Position Hands:Align the hands (hour, minute, seconds) onto the movement pinions – lightly set in place

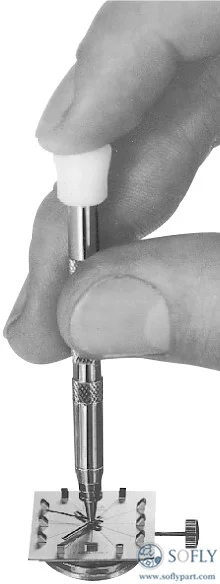

6. Press Hands:Hold the stake holder, align the stake with the hand hub, and apply even vertical pressure to press the hand onto the pinion
7. Check Installation:After pressing, verify hands are parallel, at proper height, and do not interfere with each other
Technique Tips:
Install hands from bottom layer up (typically hour → minute → seconds)
Use the flat nylon tip stake to protect the dial surface from scratches
The conical stake is suitable for specific hand types or angled operations
| Note | Details |
|---|---|
| Stake Size Selection | The stake‘s inner diameter must be slightly larger than the pivot diameter – ensures the hand hub seats correctly without damaging the pivot tip |
| Vertical Pressure | Maintain vertical alignment when pressing hands – angled operation may cause misalignment or bent pivots |
| Force Control | Apply even, gentle pressure – excessive force may deform hands, break pivots, or damage the dial |
| Protective Measures | Using the flat nylon tip stake can protect the dial surface from accidental scratches |
| Anti-Static & Dust-Free | Work in anti-static, dust-free environment to prevent dust adhesion on dial or movement |
| Professional Advice | If inexperienced, use under professional guidance or entrust to a qualified watchmaker |
| Aspect | Guidance |
|---|---|
| Cleaning | Wipe tool and stakes with a soft cloth after use to remove metal debris and dirt |
| Rust Prevention | Store in a dry place to prevent metal components from rusting |
| Stake Care | Periodically inspect stake tips for deformation or wear – replace if necessary |
| Base Inspection | Check the nickel-plated base for scratches or unevenness that may affect stability |
| Storage | Store in original packaging or a dedicated tool case to prevent impact damage |
| Replacement Interval | Long-lasting under normal use – replace stakes when severely worn |
Q1: What is the Bergeon 5378 used for?
A: The Bergeon 5378 is a professional hands setting tool used to press hour, minute, and seconds hands onto watch movement pinions. It ensures precise, vertical installation without damaging hands or pivots.
Q2: What stakes are included in the 5378 set?
A: The set includes 8 stakes: 6 cylinder hollow stakes (0.30, 0.50, 0.70, 1.15, 1.50, 1.70 mm), 1 conical stake, and 1 flat nylon tip stake.
Q3: What is the diameter of the base?
A: The nickel-plated steel base has a diameter of 50 mm, providing excellent stability during use.
Q4: Can I use this tool without the nylon tip stake?
A: Yes, but the nylon tip stake is recommended for final pressing to protect the dial surface from accidental scratches.
Q5: Is this tool suitable for beginners?
A: Yes, with proper guidance. The Bergeon 5378 is designed for ease of use, but beginners should practice on spare movements first and consider professional supervision.
