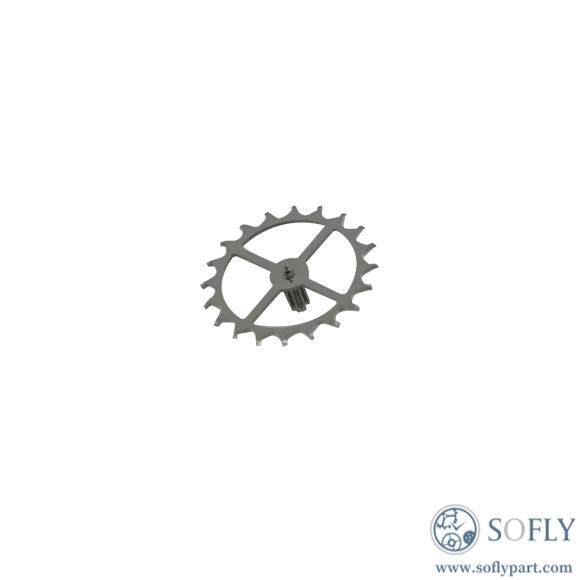

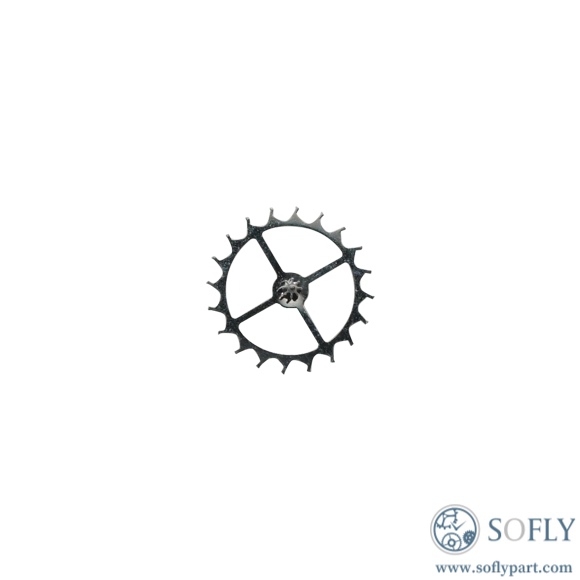

This is a genuine Chopard escape wheel for Caliber 09.01, a Swiss‑made original component. As a core part of the escapement, it works with the pallet fork and balance wheel to convert gear train energy into precise oscillating beats, controlling timekeeping accuracy. This original factory part is the ideal replacement for restoring stable timekeeping function when servicing the Caliber 09.01 movement.
Genuine Chopard Part – Swiss factory‑original for Caliber 09.01, not a copy.
Escapement Core – Works with pallet fork and balance to convert gear train energy into stable oscillation.
Precision Machined – Accurate tooth geometry for efficient power transfer and low friction.
Essential for Service – Common failure point for inaccurate timekeeping, stoppage, or low amplitude.
Compatible Movement – Designed for Chopard Caliber 09.01 automatic.
| Parameter | Details |
|---|---|
| Part Name | Escape Wheel |
| Compatible Movement | Chopard Caliber 09.01 automatic |
| Type | Genuine original |
| Function | Escapement power transmission, controls timekeeping accuracy |
| Origin | Switzerland |
| Condition | Brand new, genuine |
Chopard Caliber 09.01 automatic movement (e.g., basic automatic models in the L.U.C collection).
Repair of severe timekeeping errors, stoppage, or low amplitude not resolved by routine service.
Replacement of escape wheels with worn teeth, bent pivots, or damaged jewel holes during service.
Professional watch workshops, brand service centers.
1. Is this a genuine Chopard escape wheel?
Yes. It is a Swiss factory‑original part for Caliber 09.01, not a copy.
2. What are the symptoms of a damaged escape wheel?
Symptoms: very fast or slow timekeeping; stoppage or intermittent running; very low amplitude; irregular ticking noise.
3. What should I pay attention to during installation?
The escape wheel sits between the mainplate and the escape bridge. Ensure both pivots drop into jewels and the teeth properly engage the pallet fork. Follow the Chopard technical guide. Professional installation is strongly recommended.
4. Does this part fit other Chopard calibers like Caliber 01.01?
No. Different calibers have different escape wheel dimensions – not interchangeable.
5. Is regulation required after replacement?
Yes. After replacing the escape wheel, check amplitude, beat error, and rate, and adjust as needed. Use a timing machine for final verification.
