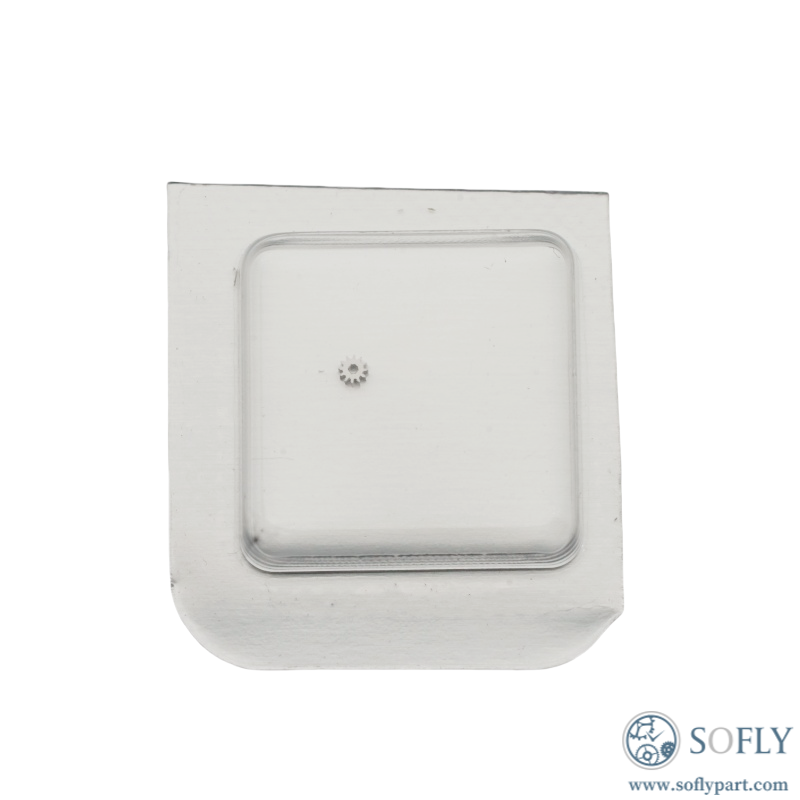

ETA Caliber 2892-450 Setting Wheel

Quantity	Discount (%)	Price
1 - 2	—	$4.00
3 - 4	5 %	$3.80
5 - 9	7 %	$3.72
10 - 14	10 %	$3.60
15+	15 %	$3.40

Quantity

Discount (%)

Price

1 - 2

—

$4.00

3 - 4

5 %

$3.80

5 - 9

7 %

$3.72

10 - 14

10 %

$3.60

15+

15 %

$3.40

Product Description

This is a genuine Swiss-made ETA 2892-450 setting wheel, a critical component within the keyless works of the ETA 2892 and 2892-A2 automatic movements. As part of the setting mechanism, the setting wheel transmits torque from the sliding pinion to the minute wheel when the crown is pulled out to the hand-setting position, enabling precise time adjustment while also providing stable axial positioning for the minute wheel.

When the teeth of the setting wheel become worn or the gear integrity is compromised, replacing it with this original OEM part is the recommended approach to restore the time-setting function of the 2892 caliber.

Features & Function

Genuine Quality: Factory-produced by ETA Switzerland, brand new, fully compliant with original material and precision standards.

Compatible Movements: ETA 2892 and 2892-A2 automatic calibers (21 jewels, 28,800 vph, approx. 42-50h power reserve).

Part Number: ETA 2892.450 / ETA2892-0450.

Core Function: The setting wheel (450) is a key transmission component in the keyless works, positioned between the sliding pinion and the minute wheel. When the crown is pulled out to the time-setting position, the setting wheel precisely transmits rotational torque from the sliding pinion to the minute wheel, ensures smooth and accurate movement of the minute and hour hands for precise time adjustment. The smoothness and accuracy of manual time-setting depend heavily on the correct meshing of the setting wheel with the minute wheel.

Construction: The setting wheel is a precision steel gear with finely formed teeth. Its central arbor is precisely supported by jewel bearings within the mainplate and the keyless works bridge, ensuring both vertical alignment and stable radial support.

Repair Value: When the setting wheel exhibits worn teeth, broken teeth, or increased side-play, it will cause a gritty or uneven hand-setting feel. In such cases, this original part must be replaced.

FAQ

Q1: The movement feels jerky when I set the time – is it always the setting wheel’s fault?
A: Possibly, but it may also be a worn clutch wheel or minute wheel. All three interact directly; worn teeth on any one of them will affect setting smoothness. The correct approach is to disassemble the keyless works and inspect all three components together. If the setting wheel shows flattened or shiny tooth tips, replace it – and also inspect its mating wheel for similar wear.

Q2: Is the setting wheel for ETA 2892 the same part number as for ETA 2824-2? Can I swap them?
A: No. The overall construction of the keyless works is similar in name but differs in module, tooth count, and arbor diameter. The setting wheel for a 2824-2 will not fit a 2892. Always order the correct 2892.450 setting wheel for the 2892 caliber.

Q3: I installed a new setting wheel, but the hands are still hard to turn when I set the time.
A: Over‑lubrication is a common cause. If oil was accidentally placed on the gear teeth, it will create hydraulic resistance and make the hands feel heavy. Another possibility is that the gear clearance between the setting wheel and the minute wheel is too tight – often due to the keyless works cover being tightened down unevenly. Clean the teeth, and relubricate only the arbor pivots with Moebius 9010. If still tight, try loosening and evenly retorquing the cover screws slightly.

Q4: Is the setting wheel prone to failure? Why did mine fail after only two years?
A: The setting wheel itself has a long service life under normal use. Premature wear can result from a side‑impact on the crown (e.g., dropping the watch), improper cleaning that leaves abrasive debris behind, or poor initial fit of the keyless works. When replacing the wheel, always inspect the adjacent sliding pinion and minute wheel to make sure they are in good condition.
