$165.00
You Saved

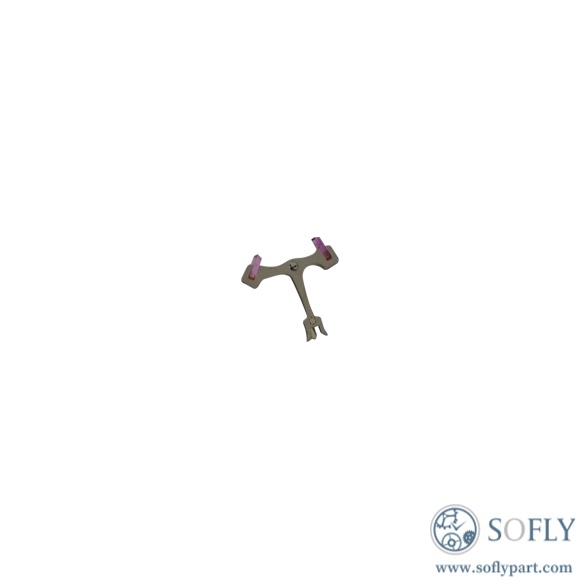

Generic pallet fork for Vacheron Constantin Calibre 1226 automatic movement. As a crucial component of the traditional Swiss lever escapement, it works with the escape wheel to regulate energy release from the mainspring into precise impulses that drive the balance wheel. Precision‑machined from high‑grade steel, this aftermarket replacement is ideal for restoring original escapement performance when the original fork becomes worn, chipped, or damaged.
Direct fit for VC Calibre 1226 (26.60 mm diameter, 3.25 mm thick).
Precision‑machined high‑grade steel – durable and wear‑resistant.
Works with escape wheel for consistent amplitude and rate.
Essential for lever escapement – converts raw mainspring torque into dosed impulses.
Drop‑in replacement – no modification to the escapement required.
| Parameter | Value |
|---|---|
| Compatible caliber | Vacheron Constantin 1226 (automatic) |
| Movement diameter | 26.60 mm (11‴ ½) |
| Movement thickness | 3.25 mm |
| Movement parts | 143 |
| Jewels | 36 |
| Frequency | 28,800 vph (4 Hz) |
| Power reserve | approx. 40 hours |
| Material | High‑grade steel |
| Type | Aftermarket |
Replace worn, chipped, or damaged pallet fork during full service of Vacheron Constantin Calibre 1226.
Suitable for Overseas date models (refs. 47040, 47560, 47660, 47032, etc.) and related 1226‑powered watches.
Professional watch repair and restoration.
Q1: Genuine Vacheron Constantin part?
No, generic aftermarket replacement.
Q2: Which caliber does it fit?
Vacheron Constantin Calibre 1226 only (36 jewels, 143 parts, 28,800 vph).
Q3: What are signs of a worn pallet fork?
Low amplitude, uneven ticking, poor timekeeping, or visible damage under magnification.
