Ronda 4220.B Quartz Movement

$45.00
You Saved

Discount

Quantity Discount (%) Price
1 - 2 $45.00
3 - 4 5 % $42.75
5 - 9 7 % $41.85
10 - 14 10 % $40.50
15+ 15 % $38.25
x

Product Description

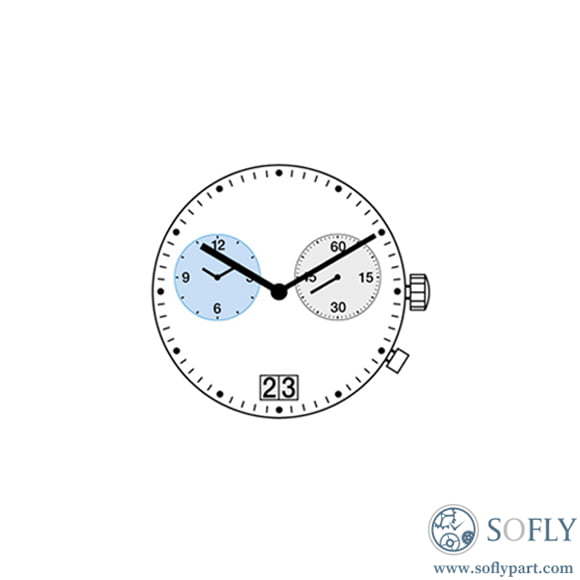

The Ronda 4220.B is a high‑quality Swiss‑made quartz movement measuring 12½‴ (28.0mm) in diameter and 4.4mm in height, designed for multifunctional chronograph watches. It features a 3‑9 layout (small seconds at 9, second timezone hands at 3), along with a big date display and an independent small second hand.

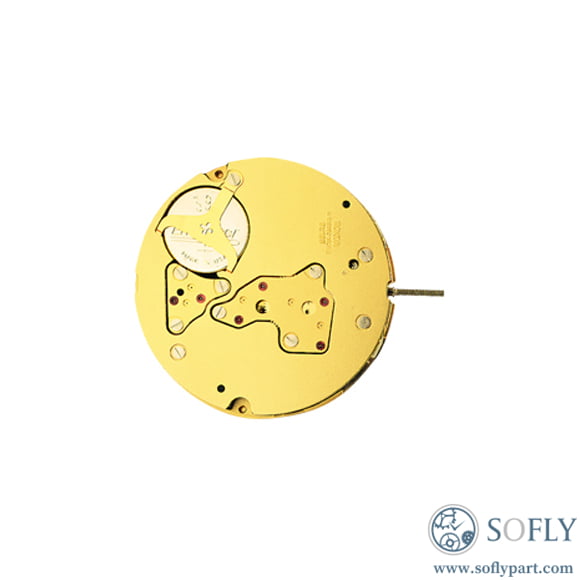

The Swiss Made version comes with 7 jewels and a gold‑plated finish, offering a standard battery life of 54 months, making it a reliable power source for professional chronograph and multi‑function timepieces.

Features & Function

  • Swiss made genuine: Ronda is a leading Swiss quartz movement manufacturer; this movement is brand new and produced in Switzerland.

  • Dimensions: 12½‴ (28.0 mm) diameter, 4.4 mm thickness – suitable for medium to large cases.

  • Multifunction display

    • 3‑9 Multifunction: Sub‑dials at 3 and 9 o‘clock (typically for second timezone/24‑hour indication or a chronograph counter).

    • Second timezone: Independently adjustable second timezone hand for reading home time while traveling.

    • Big date: Double‑window big date display for excellent legibility.

    • Small second: Independent small seconds sub‑dial at 9 o’clock.

  • Jewels & finish: The Swiss Made version contains 7 jewels and features a gold‑plated movement finish for durability and aesthetics.

  • Battery life: Typical battery life approx. 54 months (4.5 years), using a 371/370 cell (not included).

  • Accuracy: Rate tolerance typically -10/+20 seconds per month (quartz standard).

  • Hand fitting height: 2 – compatible with standard watch hands.

  • Packaging: Supplied in a SOFLY anti‑static, moisture‑resistant tray; winding stem included.

FAQ

Q1: Is the big date instant‑jumping?
A: The big date advances stepwise over a few minutes around midnight – this is normal for this caliber.

Q2: Can the second timezone hand be adjusted independently?
A: Yes. The second timezone hand is independently adjustable, typically via a specific crown position or an additional pusher, depending on the case design. The movement supports this function.

Q3: What does ‘hand fitting height 2‘ mean?
A: This measures the distance from the movement‘s upper plate to the hand mounting plane. It determines the required hand tube height. When choosing hands, ensure they match this specification.

Q4: Will the gold plating fade?
A: Under normal use, the movement is protected inside the case, so the plating will not fade. However, moisture ingress due to failed seals can cause oxidation.
