A watch dial is the face of a watch. It shows the time, holds the markers, and gives the watch most of its style.
Pick the wrong dial for a repair or custom build, and the watch may look off, fit poorly, or fail to line up with the movement. In this guide, we’ll cover watch dial parts, common dial types, materials, finishes, and the key checks you need before buying a replacement.
A watch dial is the flat face inside the watch case, sitting below the crystal and above the movement. It displays the hours, minutes, seconds, and extra features like a date window, moon phase, or chronograph sub-dials.
The dial has two jobs. First, it makes the watch easy to read. Second, it sets the style of the whole watch. A clean dress dial feels very different from a busy chronograph dial, even when both use the same case shape.
For replacement work, the dial must fit the movement. The dial feet, date window, center hole, and outer diameter all need to line up. If one part is off, the dial may not sit flat, the date may not align, or the hands may scrape the surface.

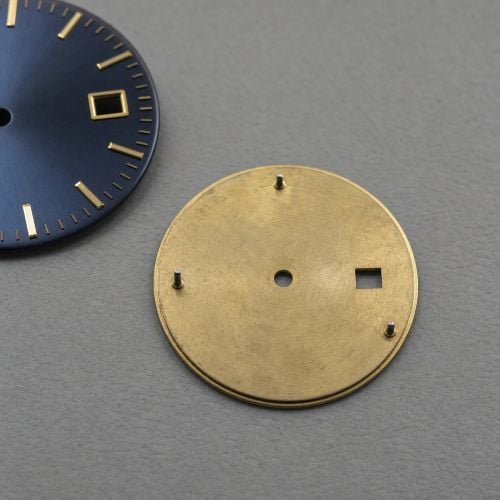

The main watch dial parts include the dial base, hour markers, logo, date window, lume, sub-dials, and dial feet. These parts work together to make the watch readable, stable, and visually balanced.
Component | What It Does |
Dial Base | The main plate that supports the rest of the dial |
Hour Markers / Indices | The numbers, batons, dots, or Roman numerals used to read time |
Sub-Dials | Small counters used for chronographs, calendars, or other functions |
Date Window | The cutout that shows the date disc under the dial |
Brand Logo | The printed or applied logo, usually placed near 12 o’clock |
Lume | Glow material used on markers for low-light reading |
Dial Feet | Small pins under the dial that lock it to the movement |
The dial feet are the first thing to check during replacement. Their position must match the holes on the movement plate. Even a small mismatch can make the dial sit crooked, which then affects hand clearance and case fit.
For a closer look at repair and custom build options, you can browse Sofly’s watch dial parts catalog.

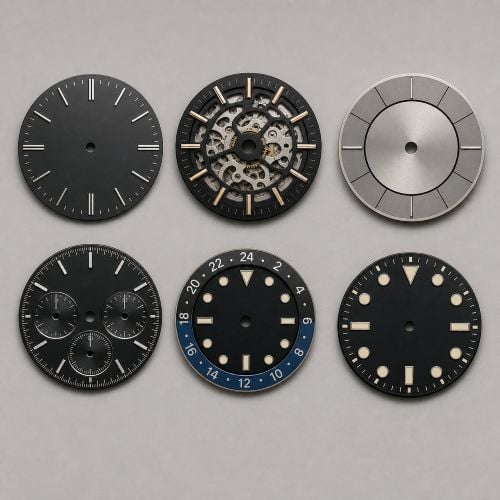

The main watch dial types include minimalist, skeleton, sector, California, chronograph, GMT, moon phase, diver’s, tropical, and ghost dials. Some are chosen for style. Others are chosen because the movement needs a certain layout.
Minimalist Dial: A minimalist dial uses open space, simple markers, and clean hands. It is easy to read and works well for dress watches or modern custom builds.
Skeleton Dial: A skeleton dial exposes part of the movement. It looks technical, but it also demands a better-finished movement because more of the inside is visible.
Sector Dial: A sector dial divides the surface into rings or zones. This style is useful when you want a vintage look without making the dial feel crowded.
California Dial: A California dial mixes Roman numerals on the top half with Arabic numerals on the bottom half. It gives the watch a bold, recognizable layout.

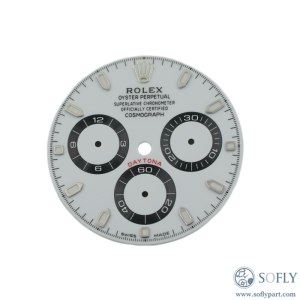

Chronograph Dial: A chronograph dial includes two or three sub-dials for timing seconds, minutes, or hours. Always match the sub-dial positions to the movement before ordering a replacement. You can also read our guide to sub-dials on a chronograph watch if you want a deeper breakdown.
GMT / Dual-Time Dial: A GMT dial helps track a second time zone, usually with a 24-hour scale or an extra hand.
Moon Phase Dial: A moon phase dial has an opening for a rotating moon disc. This type is common in dress watches and calendar complications.
Diver’s Dial: A diver’s dial favors contrast, lume, and quick reading. For repair work, make sure the replacement dial keeps the same marker layout and lume position as the original.
Tropical Dial: A tropical dial changes from black or grey to brown because of age, light exposure, and coating changes. Do not refinish it too quickly; collectors may value the original aging.
Ghost Dial: A ghost dial has faded printing or markers. For repair work, the key is to identify whether the fading is damage, age, or part of the watch’s collectible appeal.
Watch dials are usually made from brass, aluminum, silver, gold, enamel, mother of pearl, meteorite, or stone. The material affects weight, finish, aging, repair difficulty, and price.
For most repair jobs, brass is the safest starting point. It is easy to shape, accepts printing and coating well, and appears in many OEM and aftermarket dials.
Brass: Brass is common in replacement dials because it is stable, easy to machine, and friendly to printing, plating, and lacquer.
Aluminum: Aluminum is lighter than brass, so it works well for sports watches and field watches. It is often anodized instead of plated.
Silver or Gold: These metals appear more often in vintage and luxury dress watches. They can age beautifully, but they need careful handling during repair.
Enamel: Enamel gives the dial a smooth, deep surface that keeps its color well. It looks refined, but repair mistakes can be expensive.
Mother of Pearl: Mother of pearl comes from shell material and has a natural shimmer. Because each slice looks different, it works well for custom and dress watch designs.
Meteorite or Stone: Meteorite, malachite, lapis lazuli, onyx, and similar materials give the dial a rare look. They are also more fragile, so they are not the easiest choice for beginner replacement work.
For a deeper material-by-material breakdown, read our guide to watch dial materials.
Matte Finish: A matte dial has a flat, low-reflection surface. It is a good choice for tool watches, pilot watches, and repairs where legibility matters more than shine.
Glossy / Lacquered Finish: A glossy dial has a polished surface that makes colors look deeper. It works well for dress watches, but scratches, dust, and printing flaws may show more clearly.
Sunburst Finish: A sunburst dial uses radial brushing from the center outward. It catches light as the wrist moves, so it gives a simple dial more depth without adding extra parts.
Guilloché Finish: Guilloché uses engraved patterns to create a textured surface. It gives the dial a premium look, but it is harder to reproduce well in low-cost replacement dials.
Linen / Crosshatch Finish: Linen and crosshatch finishes use fine lines to create a vintage-style texture. They are useful for restoring older watches or building a dial with a softer retro look.
Choose a watch dial replacement by checking the dial size, movement compatibility, dial feet position, date window alignment, and hand clearance. A dial may look correct from the front but still fail to fit the movement.
Before buying a replacement dial, measure the original dial and record the key fit points.
Measurement | What to Check | Why It Matters |
Dial Diameter | Measure the widest point across the dial | The dial must fit inside the case without rubbing the chapter ring or case wall |
Dial Feet Position | Check where the small feet sit on the back of the dial | The feet must match the movement plate holes |
Date Window Position | Check the clock position and distance from the center | The window must line up with the date wheel |
Center Hole Size | Measure the opening for the hand stack | The hands need enough clearance to move freely |

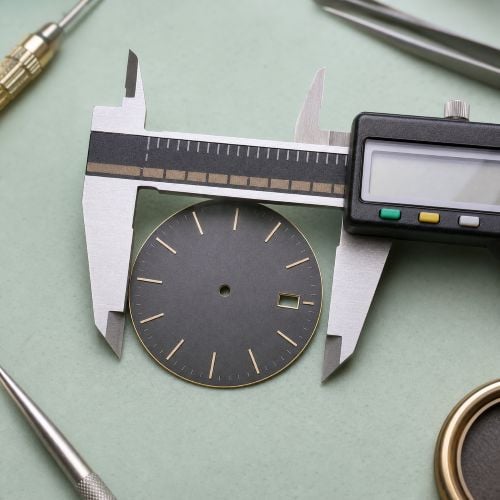

Use a digital caliper if you want a reliable measurement. Before removing the old dial, take one photo from the front and one from the side. Those photos help you check marker position, date window alignment, and hand clearance later.
For common movements like NH35, Miyota 8215, or ETA 2824-2, you should also check the supplier’s movement compatibility notes. A dial listed for your exact movement is usually safer than one listed only by size.
Watch dial replacement is not only about swapping one face for another. The new dial must match the movement, case size, date window, dial feet position, and hand clearance before it can fit correctly.
In most repair jobs, check these points first:
Movement Compatibility: The replacement dial should match the movement model, such as NH35, Miyota 8215, or ETA 2824-2.
Dial Feet Position: The feet on the back of the dial must line up with the movement plate. If they do not match, the dial may sit unevenly.
Date Window Alignment: The date window needs to line up with the date wheel. This is especially important for 3 o’clock, 4:30, and 6 o’clock date layouts.
Hand Clearance: The center hole and dial thickness must leave enough space for the hands to move without scraping.
Dial Condition: Check the front surface, logo print, markers, lume, and dial feet before installation. Small defects are much easier to catch before the dial goes into the case.
A simple dial swap may be possible for experienced watchmakers or repair shops. For vintage watches, luxury watches, chronographs, or watches with collectible value, professional replacement is safer.
Choose an OEM dial for high-value watches, warranty repairs, and collector pieces. Choose an aftermarket dial for budget repairs, custom builds, discontinued movements, or shop inventory.
Option | Best For | Main Benefit | Main Risk |
OEM Dial | Authorized repairs, luxury watches, collectible references | Original fit, finish, and resale value | Hard to source and often expensive |
Aftermarket Dial | Custom builds, common movements, discontinued watches, repair shop stock | Easier sourcing and more style options | Quality and fit vary by supplier |
OEM dials are made by or for the original watch brand. They are the safer choice when authenticity and resale value matter. The downside is access. Many independent repair shops cannot order OEM dials directly, especially for major luxury brands.
Aftermarket dials are made by third-party suppliers for specific movements, case sizes, and design styles. They are often the better choice for custom builds and practical repairs.
Before buying an aftermarket dial, check:
For repair shops and custom builders, Sofly’s watch dial parts catalog gives you a practical starting point for replacement dials with clear compatibility details.
You can buy watch dials from authorized service centers, specialist watch parts suppliers, secondary markets, or custom dial suppliers. The best option depends on whether you need an OEM dial, a replacement dial, or a custom dial.
Authorized service centers are the best route for OEM dials. This matters for luxury watches, warranty repairs, and collectible references where originality affects value.
The limit is access. Many brands only supply parts through approved service networks, so independent shops may need another sourcing option.
Specialist suppliers are the most practical choice for many watch dial replacement jobs. Look for pages that list dial diameter, dial feet position, movement compatibility, date window position, front and back photos, and return terms.
Sofly offers generic and brand-compatible watch dial parts for repair shops, watchmakers, and custom builders who need clear specs before ordering.
Secondary markets can help you find vintage, discontinued, or NOS dials. They can be useful, but they also need more caution.
Before buying, check seller history, close-up photos, dial feet condition, and return options. A dial can look fine in one photo and still have damaged feet, refinished printing, or a date window that does not match your movement.
Custom dial suppliers are useful when a client wants a specific color, logo, marker layout, or finish. This route works best for custom builds, private-label watches, and small production runs.
For more detail on custom options, read our guide to watch dial customization.
A watch dial does more than show the time. It controls the look of the watch, affects readability, and must match the movement if you want a clean replacement.
Before buying a replacement dial, check the material, finish, diameter, dial feet, date window, and movement compatibility. For custom builds, also think about the marker style, logo position, and whether the finish matches the case and hands.
If you are sourcing dials for repair work, client builds, or shop inventory, browse Sofly’s watch dial parts catalog to compare replacement options with clear specs and global shipping.
